Frameless sliding glass systems are architectural glazing assemblies built around slim tracks and minimal hardware. Instead of thick vertical stiles between panels, individual panes slide independently and stack along a top and bottom guide, so the finished opening reads as glass rather than as framing.
How the system is put together
Every sliding system is a set of related decisions: the track, the panel makeup, the interlocks between panels, and the way the assembly meets the floor and head. The track carries the weight and controls alignment; the panel makeup determines weight, thermal behaviour and acoustic performance; the interlock detail decides how tight the closed position feels. Changing one of those variables usually changes the others, which is why sliding systems are specified as a package rather than assembled from parts chosen separately.

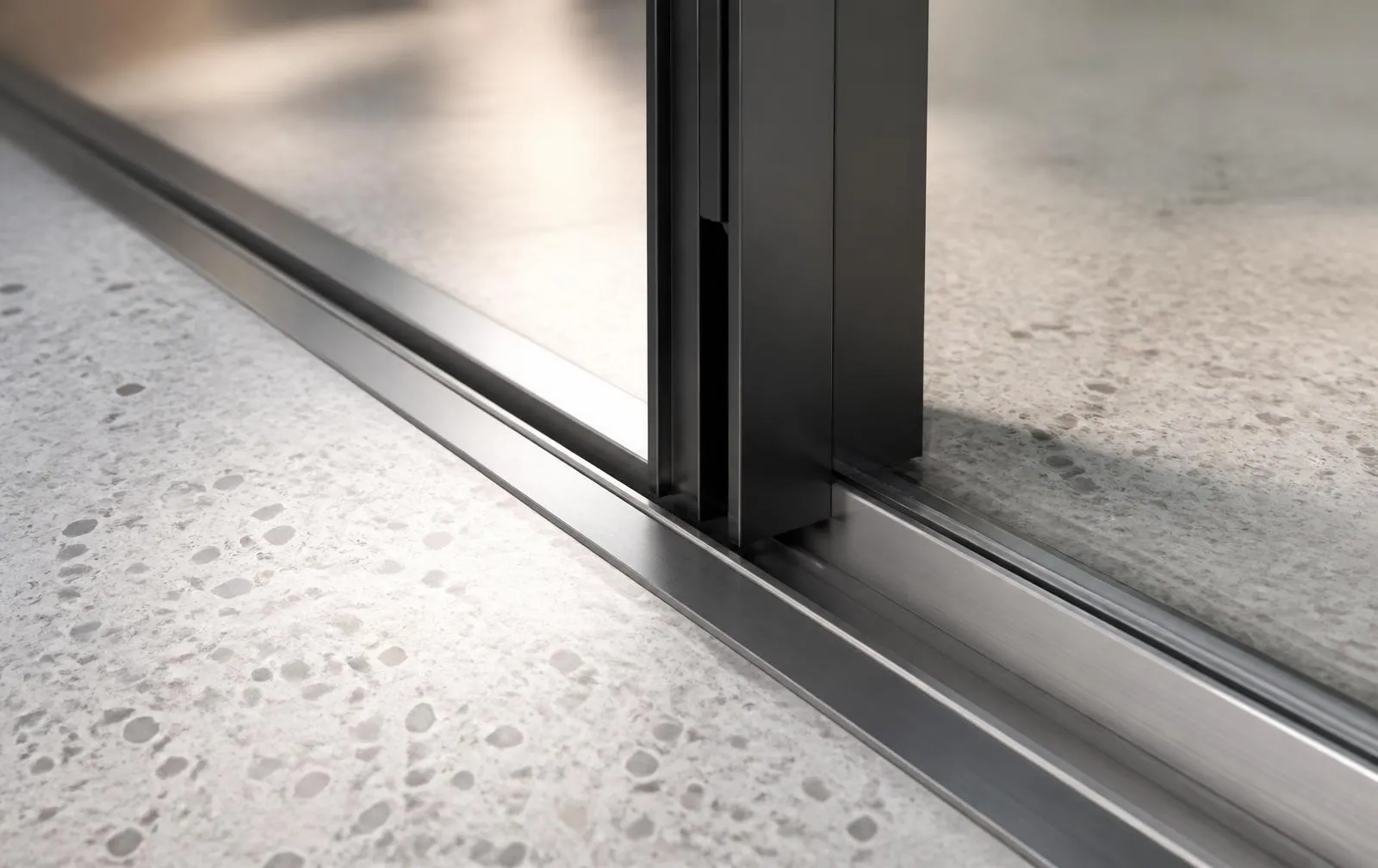

Panels are generally hung from a head track or supported on a floor track. Top-hung arrangements keep the floor condition cleaner and are easier to keep operating smoothly over time, but they require structure above the opening that can carry the panel weight without deflecting. Floor-supported arrangements shift the load down but make the sill detail — drainage, thresholds, debris — the more demanding part of the design.
Where the type matters most
The distinction that most affects planning is between systems that stack panels to one side and systems that pocket panels into a wall cavity. Stacking is simpler and cheaper because nothing is concealed; the trade-off is that the stack occupies part of the opening even when fully open. Pocketing removes the stack from view entirely but has to be designed into the wall early, since the cavity, the finishes and any services in that wall all have to accommodate it.
A second distinction is between multi-slide systems, where panels roll on rollers throughout, and lift-slide systems, where turning the handle lifts the panel off its seals before it moves. Lift-slide hardware allows heavier panels and a tighter seal when closed, at the cost of a more deliberate operating action. Our comparison of lift-slide and multi-slide doors covers the trade-offs in more detail.
What this means for an opening
Because frames are minimal, the effect emphasises the surrounding architecture rather than the glazing itself. That is also why frameless sliding systems are unforgiving of a rough opening that is out of square or out of level: with no wide frame to hide behind, a few millimetres of deviation is visible along the whole panel edge. Openings intended for frameless sliding glass are worth checking for square, level and plumb before glass is ordered rather than after.
For planning purposes it helps to record the structural opening size, what sits above the head, the floor build-up on both sides, and whether the opening is exposed to weather. Those four facts determine most of the specification. If you are assembling that information across several openings, the window and door schedule guide sets out a format that fabricators can quote from directly.
